Loa cột Electrovoice EVOLVE 50

Sản phẩm
Loa cột Electrovoice EVOLVE 50
  • Loa cột Electrovoice EVOLVE 50
  • Loa cột Electrovoice EVOLVE 50
  • Loa cột Electrovoice EVOLVE 50
  • Loa cột Electrovoice EVOLVE 50
  • Loa cột Electrovoice EVOLVE 50

Loa cột Electrovoice EVOLVE 50

Mã sp : Loa cột Electrovoice EVOLVE 50

Số lượng :

Giá bán : 55.000.000 Đ
Giá khuyến mãi : 42.000.000 Đ (giá tham khảo)
(Giá chưa bao gồm thuế 10% VAT)
Hotline: 0908677003

EVOLVE 50

Portable column system

  • Clean, Compact Design — Built to Blend In
  • Easy Transport & Setup
  • Professional PA Performance
  • Wide, Even Coverage
  • QuickSmart DSP
  • Wireless Control & Monitoring
  • High‑Quality Bluetooth* Audio
  • Now Available in White

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP.

The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz.

The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

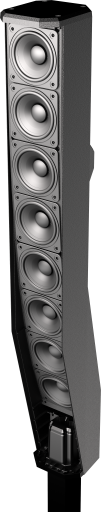

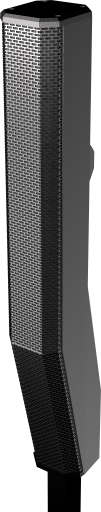

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.



  • Frequency response (-3 dB)1    43 Hz-20 KHz
  • Frequency range (-10 dB)1    37 Hz-20 KHz
  • Maximum SPL2    127 dB
  • Coverage (H x V)    120° x 40°
  • Amplifier rating    1000 W
  • LF channel rating    500 W
  • HF channel rating    500 W
  • Crossover frequency    200 Hz

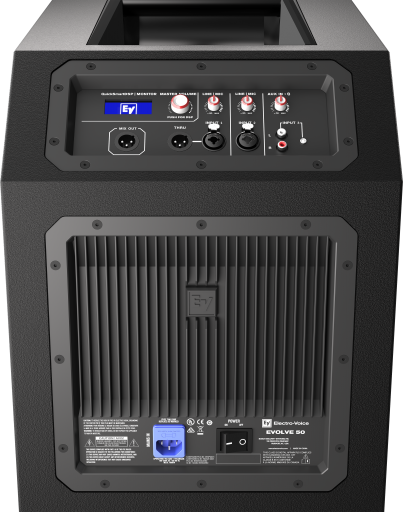

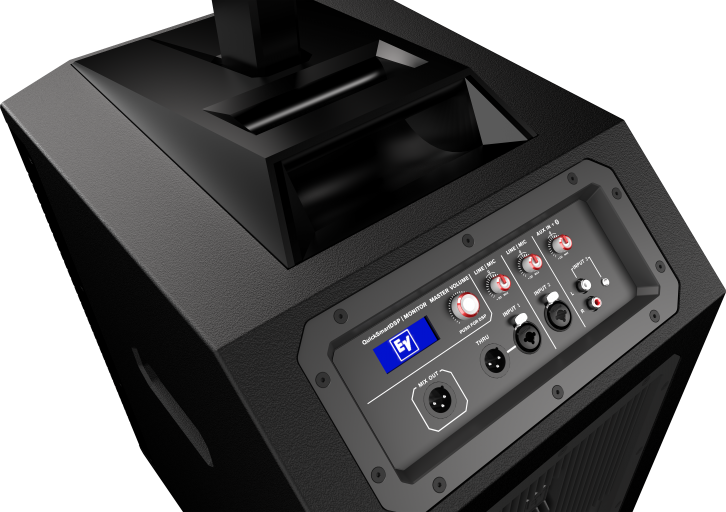

  • Connectors    2x XLR/TRS Combo Jack Input
  • 1x 3.5 mm Input
  • 1x Stereo RCA Input
  • 1x Wireless Bluetooth® Audio Input
  • 1x XLR THRU Output
  • 1x XLR MIX OUT Output
  • Enclosure    Sub: 15 mm plywood
  • Column: Composite
  • Pole: Aluminum
  • Grille    Steel with black or white powder coat
  • Color    Black or white
  • Dimensions (HxWxD): mm (in)    Sub: 530 x 345 x 471 (20.9 x 13.6 x 18.5)
  • Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9)
  • Pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)
  • Net weight    Sub: 44.66 lb (20.3 kg)
  • Column: 10.34 lb (4.7 kg)
  • Pole: 2.75 lb (1.25 kg)
  • Sub cover: 0.9 lb (0.4 kg)
  • Bag for column and pole: 1.87 (0.85 kg)
  • Shipping weight    Sub box: 50.71 lb (23 kg)
  • Column box: 18.30 lb (8.3 kg)
  • Power consumption3    100-240 V AC, 50-60 Hz, 1.5-0.6 A
