Loa treo Bose DesignMax DM6PE

Mã sp : Loa treo Bose DesignMax DM6PE

Hotline: 0908677003

Loa treo Bose DesignMax DM6PE

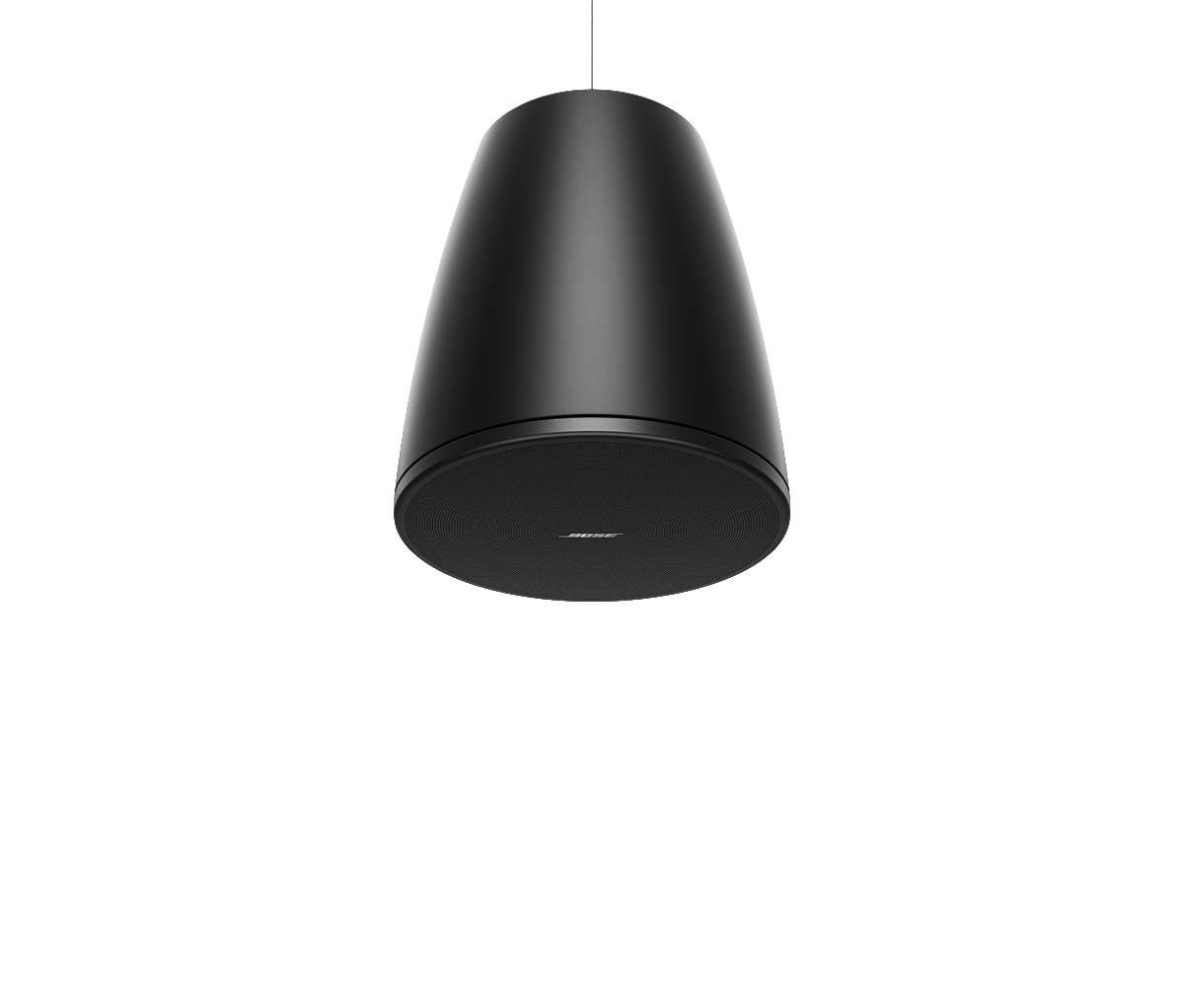

With a coaxial two-way design, the 125-watt Bose Professional DesignMax DM6PE loudspeaker offers rich lows and clear, intelligible highs — along with premium aesthetics that complement any commercial sound installation. It features a coaxial 6.5-inch woofer and a 1.25-inch tweeter mounted within the Dispersion Alignment system and the DM6PE pendant loudspeaker delivers 62 Hz – 20 kHz. The DM6PE is an IP55 outdoor-rated pendant loudspeaker featuring a recessed single-point suspension system for a sleek, attractive appearance and is available in black or white.

    Complete any commercial sound installation with 16 DesignMax loudspeakers to mix and match, including in-ceiling, surface-mount, and pendant form factors, subwoofers, high-SPL compression-driver models, compact low-profile models, and outdoor-rated options

    Choose from three DM6 models — the in-ceiling DM6C, the surface-mounted and outdoor-rated DM6SE, and the sleek, outdoor-rated DM6PE pendant loudspeaker

    Deliver rich lows and clear, intelligible highs with a coaxial two-way design — no DSP or EQ required. For even better sound, use select Bose Professional DSPs and amplifiers to enable Bose Professional loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level

    Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the acoustic pattern of the woofer to the pattern of the tweeter

    Blend with any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos

    Install easily with industry-standard accessories — all models include Euroblock connectors; in-ceiling models include plenum-rated backcans, tile bridges, and front-access audio wiring that makes installation and troubleshooting easier

  •  Install DM6PE outside — IP55 rating with powder-coated steel grille for outdoor
  • Colors: Black (similar to RAL 9005), white (similar to RAL 9003), paintable
  • Enclosure Material: Engineered plastics, highly UV fade-resistant
  • Environmental Testing: Outdoor per IEC 529 IP55 (suitable for use outdoors in wet locations), includes aluminum grille to prevent red corrosion and weather resistant input cover
  • Grille Material: Perforated steel, powder-coated finish
  • Ingress Protection: IP55
  • Logo: Rotatable, removable
  • Mounting/Rigging Provisions: 1 suspension attachment point, 1 safety cable attachment point
  • Net Weight: 12.5 lb (5.7 kg), single
  • Operating Temperature: -25 °C to 65 °C (-13 °F to 149 °F)
  • Product Dimensions (H×W×D): 12.1 in × 14.8 in (308 mm × 375 mm), loudspeaker diameter × depth
  • Shipping Weight: 33.1 lb (15.0 kg), pair









PERFORMANCE

  • Frequency Range (-10 dB): 62 Hz – 20,000 Hz
  • Coverage, Horizontal: 115° conical
  • Maximum SPL at 1 m: 110 dB
  • Nominal Impedance: 8 Ω (transformer bypass)
  • Power Handling, Continuous: 100 W
  • Power Handling, Peak: 400 W
  • Recommended Signal Processing
  • Not required, Bose Professional EQ voicing and SmartBass processing available
  • Sensitivity (SPL/1 W at 1 m): 89 dB
  • Transformer Taps, 100V: 5, 10, 20, 40, 80 W, bypass
  • Transformer Taps, 70V: 2.5 W, 5 W, 10 W, 20 W, 40 W, 80 W, bypass
  • Coverage, Vertical: 115° conical

TRANSDUCERS

  • Crossover Frequency: 1.7 kHz, passive 2-way crossover
  • Driver Protection: Recommended high-pass protection 60 Hz with recommended 24 dB/octave filter
  • High-Frequency Transducer Quantity and Size: 1 × 1.25 in (32 mm) neodymium dome tweeter, coaxially mounted, weather-treated
  • Low-Frequency Transducer Quantity and Size: 1 × 6.5 in (165 mm) woofer, weather-treated
