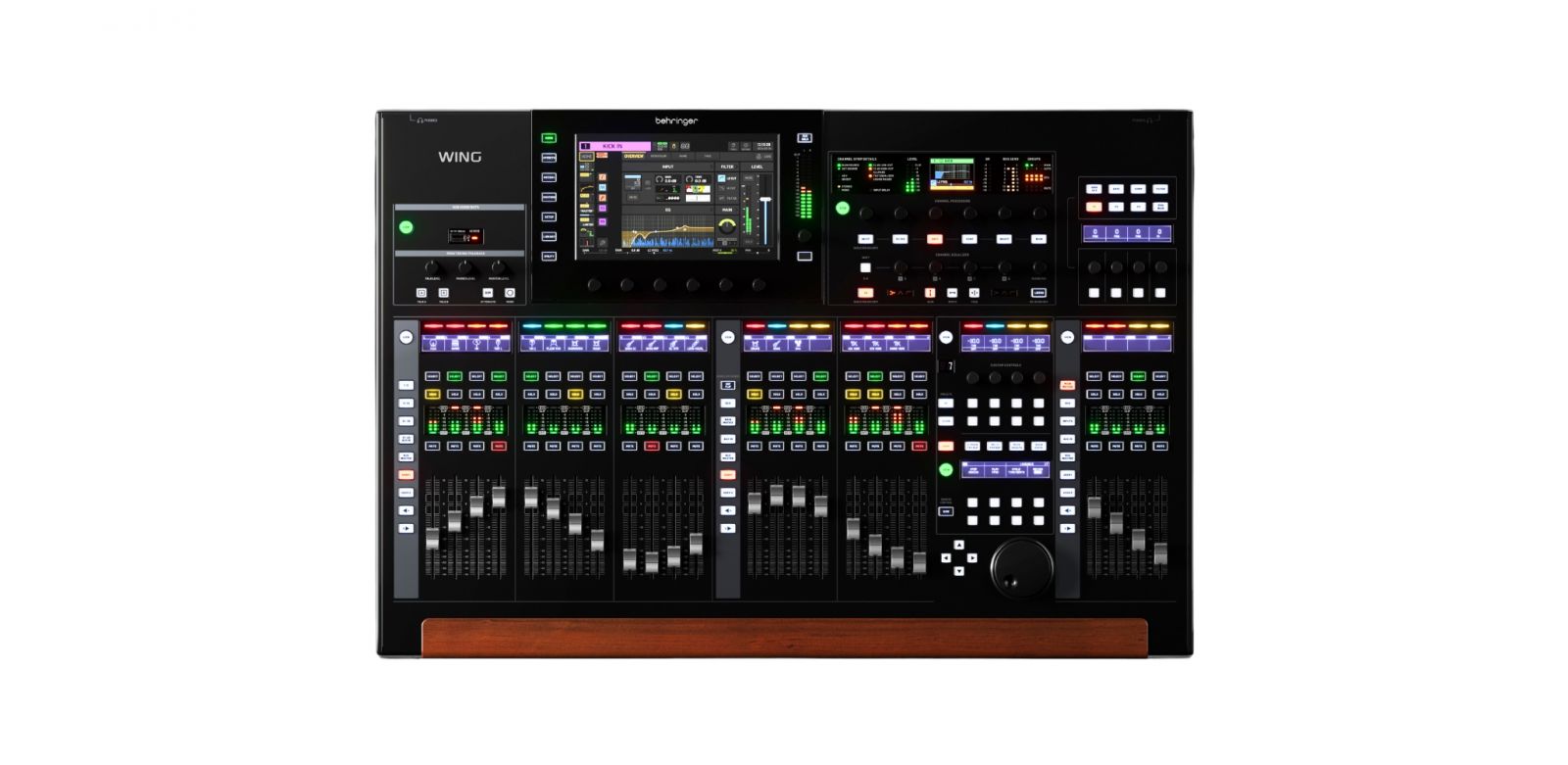

Mixer Behringer 48 kênh WING-BK
48 Stereo Channels, 28 Bus Full Stereo Digital Mixing Console with 8 Midas PRO Preamps,
8 Midas PRO Outputs, 10.1" Touch Screen and 24 Fader Control Surface
|
Input/Output Characteristics
|
|
|
Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting)
|
10 Hz - 20 kHz
|
|
Dynamic range, analog in to analog out (typical), XLR / aux
|
111 dB / 108 dB
|
|
A/D dynamic range, preamplifier and converter (typical), XLR / aux
|
112 dB / 110 dB
|
|
D/A dynamic range, converter and output (typical), XLR / aux
|
118 dB / 112 dB
|
|
Crosstalk rejection @ 1 kHz, adjacent channels
|
100 dB
|
|
Output level, XLR connectors (nominal / maximum)
|
+4 dBu / +21 dBu
|
|
Output impedance, XLR connectors (unbalanced / balanced)
|
75 Ω / 75 Ω
|
|
Input impedance, TRS connectors (unbalanced / balanced)
|
20 kΩ / 40 kΩ
|
|
Non-clip maximum input level, TRS connectors
|
+16 dBu
|
|
Aux output level, TRS (nominal / maximum)
|
+4 dBu / +16 dBu
|
|
Aux output impedance, TRS (unbalanced / balanced)
|
150 Ω / 300 Ω
|
|
Phones output impedance / maximum output level
|
500 mW @ 75 ohm / +18 dBu
|
|
Residual noise level, XLR out 1-16 connectors, unity gain
|
-97 dBu
|
|
Residual noise level, aux and monitor TRS out connectors
|
-95 dBu
|
| Displays | |
|
Main screen
|
10.1" TFT LCD, 1280 x 800 px, capacitive touch
|
|
Main screen swivel, continuous adjustment
|
15°- 60°
|
|
4-channel group LCD screen with RGB color strip per channel
|
320 x 48 monochrome
|
|
Channel editing screen
|
2.4" TFT LCD, 320 x 240 px
|
|
Main stereo meter
|
18 segment (-60 dB to clip)
|
| Controls | |
|
100 mm motor faders
|
12 + 8 + 4
|
|
Touch-sensitive rotary controls
|
3 + 7 + 11 + 4 + 4
|
|
Custom controls
|
8
|
|
Fully assignable rotary controls
|
4
|
|
Fully assignable backlit buttons
|
8 + 8
|
|
Variable rotary controls / buttons
|
04-Apr
|
| Power | |
|
Switch-mode power supply
|
Auto-ranging 100-240 VAC (50/60 Hz)
|
|
Power consumption
|
130 W
|
| Physical | |
|
Standard operating temperature range
|
5°C – 40°C (41°F – 104°F)
|
|
Dimensions (HxWxD)
|
201 x 870 x 575 mm (7.9 x 34.3 x 22.6")
|
|
Weight
|
24 kg (52.8 lbs)
|
